VENTED, CLEANROOM & STAINLESS STEEL FASTENINGS FOR HIGH-PURITY MANUFACTURING

We supply vented, cleanroom-cleaned, and high-purity fasteners designed for use in ultra-clean, controlled, and high-performance manufacturing environments. These fasteners are commonly specified in industries such as semiconductor manufacturing, semiconductor equipment, pharmaceutical and biotech production, vacuum systems, advanced optics, medical devices, aerospace clean assembly, and battery manufacturing, where contamination control, corrosion resistance, and process stability are critical.

Vented fasteners are used in vacuum and pressure-controlled applications to prevent trapped air, virtual leaks, and outgassing, supporting stable vacuum performance and repeatable process conditions. Cleanroom-cleaned fasteners are processed to remove oils, particulates, and residues, and can be supplied packaged for cleanroom use to support controlled assembly environments. Stainless steel fasteners, including grades such as 304, 316, and 316L, are widely used for their corrosion resistance, cleanability, and suitability for aggressive cleaning, wash-down, and sterilisation processes. Titanium fasteners are also commonly specified where low outgassing, non-magnetic properties, and high strength-to-weight performance are required.

In addition to metallic fasteners, selected engineering polymers may be used in specific applications where electrical isolation or chemical resistance is required. In vacuum and high-purity environments, material selection is critical, as some plastics can outgas and release contaminants. Where polymers are specified, materials are typically limited to low-outgassing grades such as PEEK, PTFE, or PVDF, and are carefully matched to the application and environment.

Typical products include vented screws and bolts, precision socket head cap screws, washers and spacers, nuts, pins, and custom fasteners for tooling, enclosures, vacuum chambers, and precision assemblies. Fasteners can be supplied with material certification and traceability where required, and we support custom sizes, materials, venting features, and cleaning specifications to suit application-specific and regulatory requirements.

Whether supporting prototype development, cleanroom builds, or volume production, we provide fastening solutions that help maintain cleanliness, reliability, and performance in the most demanding manufacturing environments.

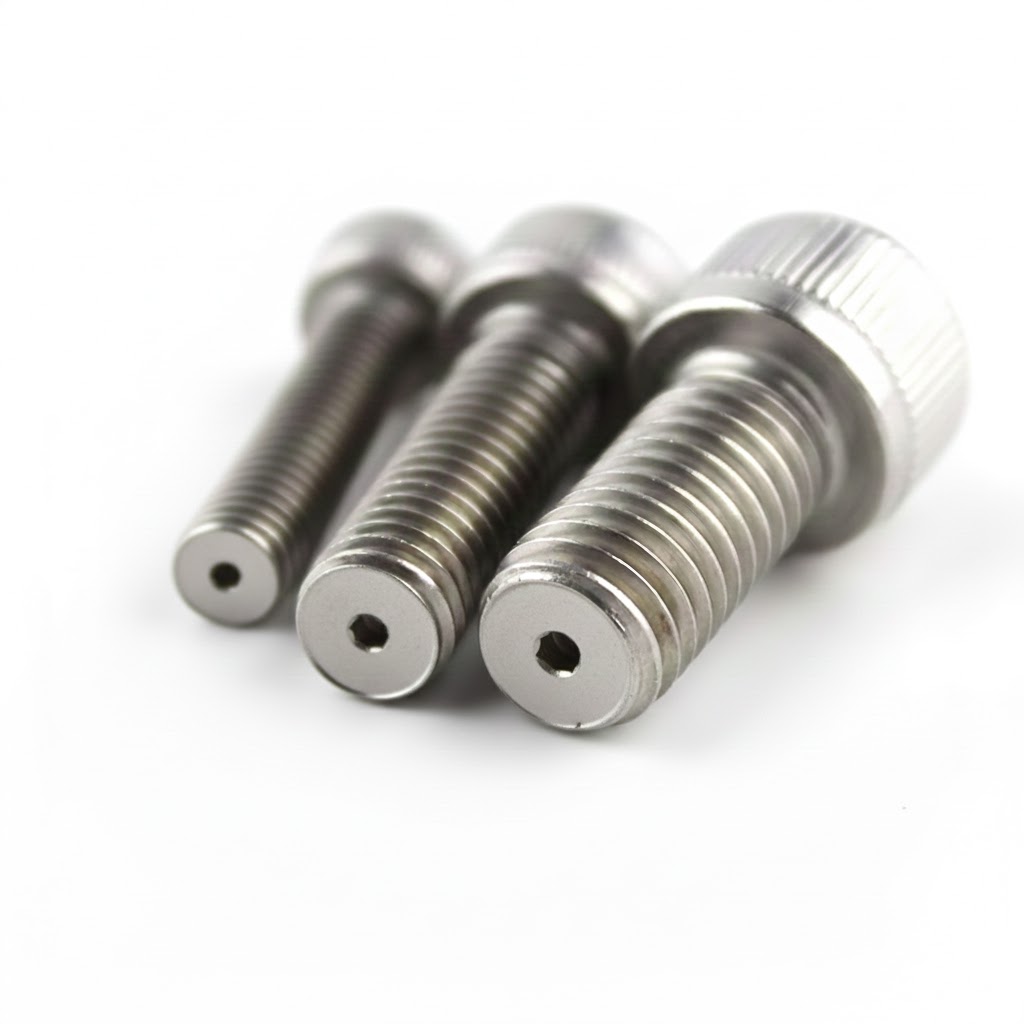

Vented Screws and the Prevention of Virtual Leaks

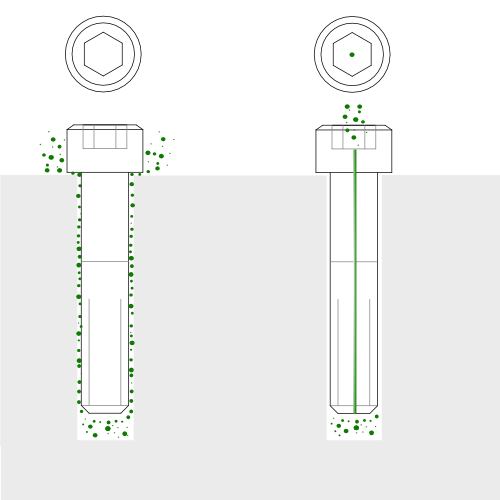

In vacuum and high-purity assemblies, trapped air and gases within blind tapped holes and threaded joints can create what is known as a virtual leak. With a standard, unvented screw, gas becomes trapped beneath the fastener and can only escape slowly along the clearance between the mating threads. This gradual release of gas can compromise vacuum performance, extend pump-down times, and introduce instability in sensitive processes.

Vented screws are designed with a central axial hole or vent path that allows trapped gas to escape directly through the fastener during evacuation. By providing a controlled and direct route for gas flow, vented screws prevent the build-up of trapped volumes and significantly reduce the risk of virtual leaks. This results in faster pump-down, improved vacuum integrity, and more stable, repeatable operating conditions in cleanroom and vacuum-based equipment.

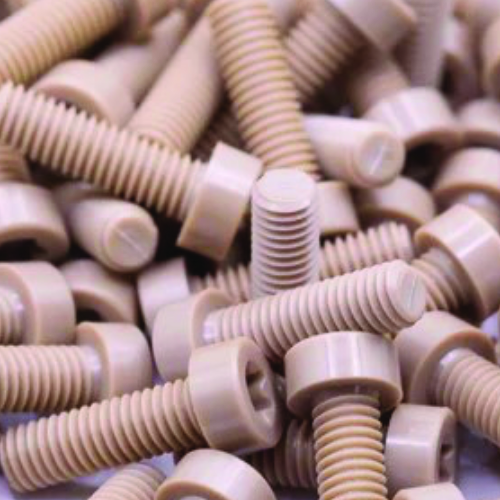

PEEK and Polymer Fasteners in Cleanroom Applications

Polymer fasteners are used in cleanroom and semiconductor environments where electrical insulation, chemical resistance, or non-metallic properties are required. Material selection is critical, as many plastics can outgas, shed particles, or degrade under vacuum, elevated temperatures, or aggressive process chemicals.

PEEK is widely specified due to its low outgassing, chemical resistance, and thermal stability, making it suitable for semiconductor equipment, vacuum systems, and wet process tools. Other polymers such as PTFE, PVDF, and selected nylon grades may be used in less critical or non-vacuum zones, but are carefully specified due to higher outgassing or reduced mechanical performance.

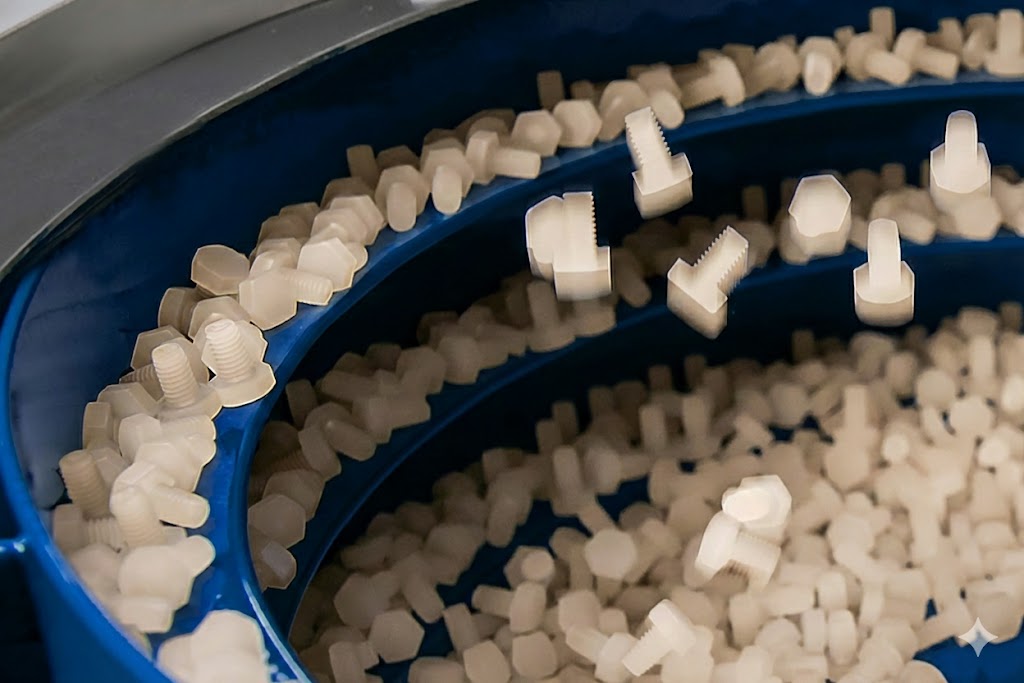

PEEK Fasteners

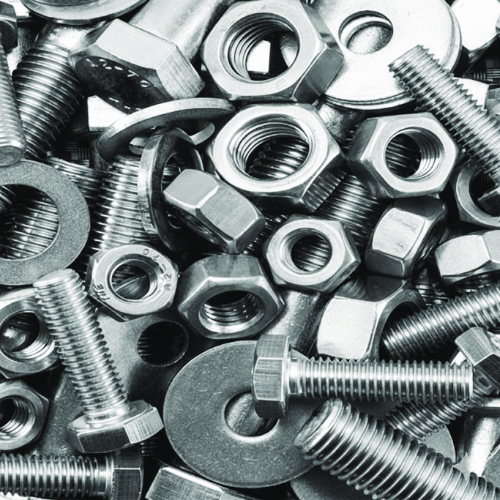

Stainless Steel, Titanium and Exotic Alloy Fasteners

Metal fasteners are widely used in cleanroom, vacuum, and high-purity manufacturing due to their strength, stability, and reliability. Material selection is critical, as corrosion resistance, magnetic properties, surface condition, and outgassing behaviour can directly affect process performance and contamination control.

Stainless steel fasteners, including grades such as 304, 316, and 316L, are commonly specified for their corrosion resistance, cleanability, and compatibility with aggressive cleaning and sterilisation processes. Titanium fasteners are used where low outgassing, non-magnetic properties, and high strength-to-weight performance are required, particularly in semiconductor equipment and vacuum systems. In more demanding environments, exotic alloys may be selected to withstand elevated temperatures, corrosive gases, or chemically aggressive conditions.

Exotic Alloy Fasteners

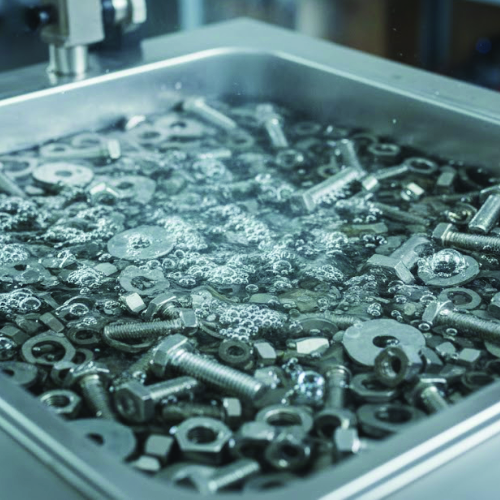

Ultrasonic Cleaning and Cleanroom Packaging

For cleanroom and semiconductor applications, fasteners are often required to be cleaned to remove oils, particulates, and manufacturing residues that can contribute to contamination or outgassing. Cleaning processes such as ultrasonic cleaning are commonly used to dislodge contaminants from threads, recesses, and surface features that cannot be effectively cleaned by conventional methods.

Following cleaning, fasteners may be dried, inspected, and packaged to maintain cleanliness during handling and installation. Depending on the application, this can include cleanroom-compatible packaging, double bagging, and labelling to support controlled environments and traceability. Cleaning level and packaging requirements are typically defined by the operating environment, vacuum exposure, and process sensitivity.
